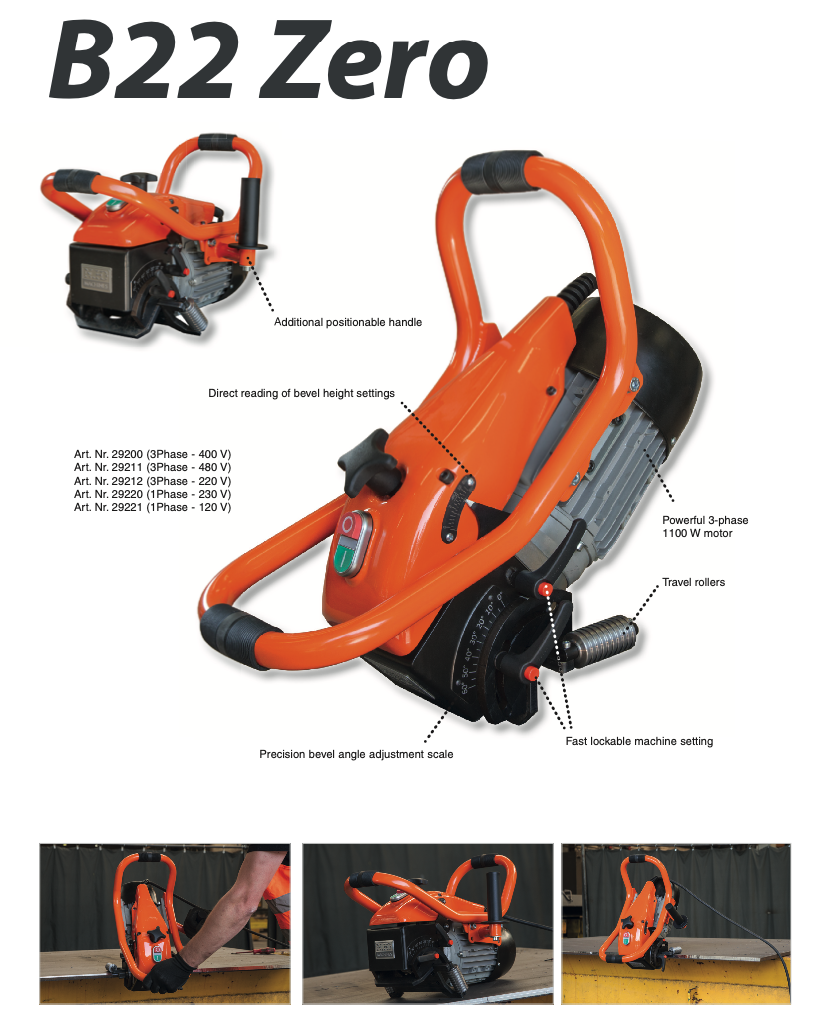

B22 ZERO

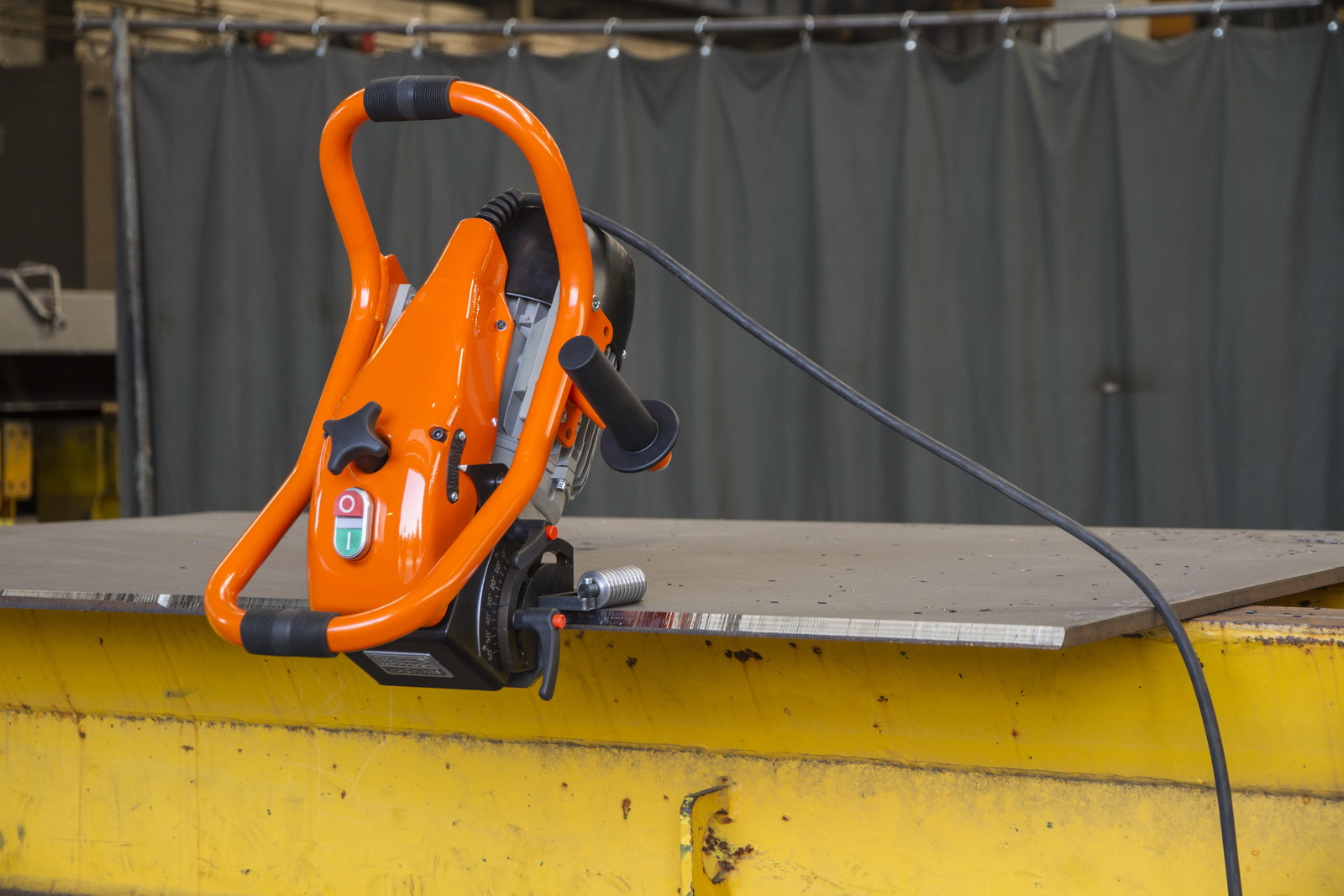

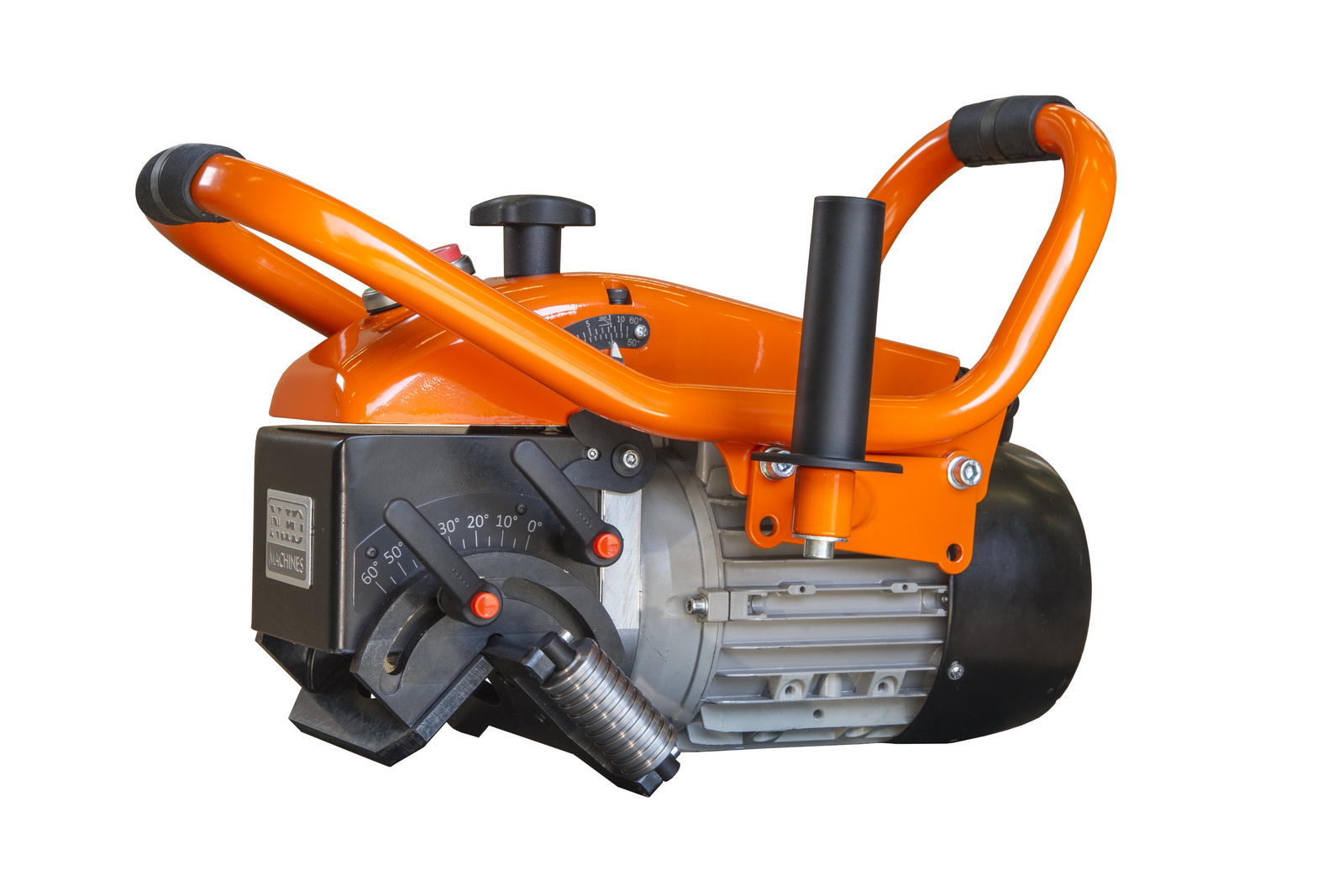

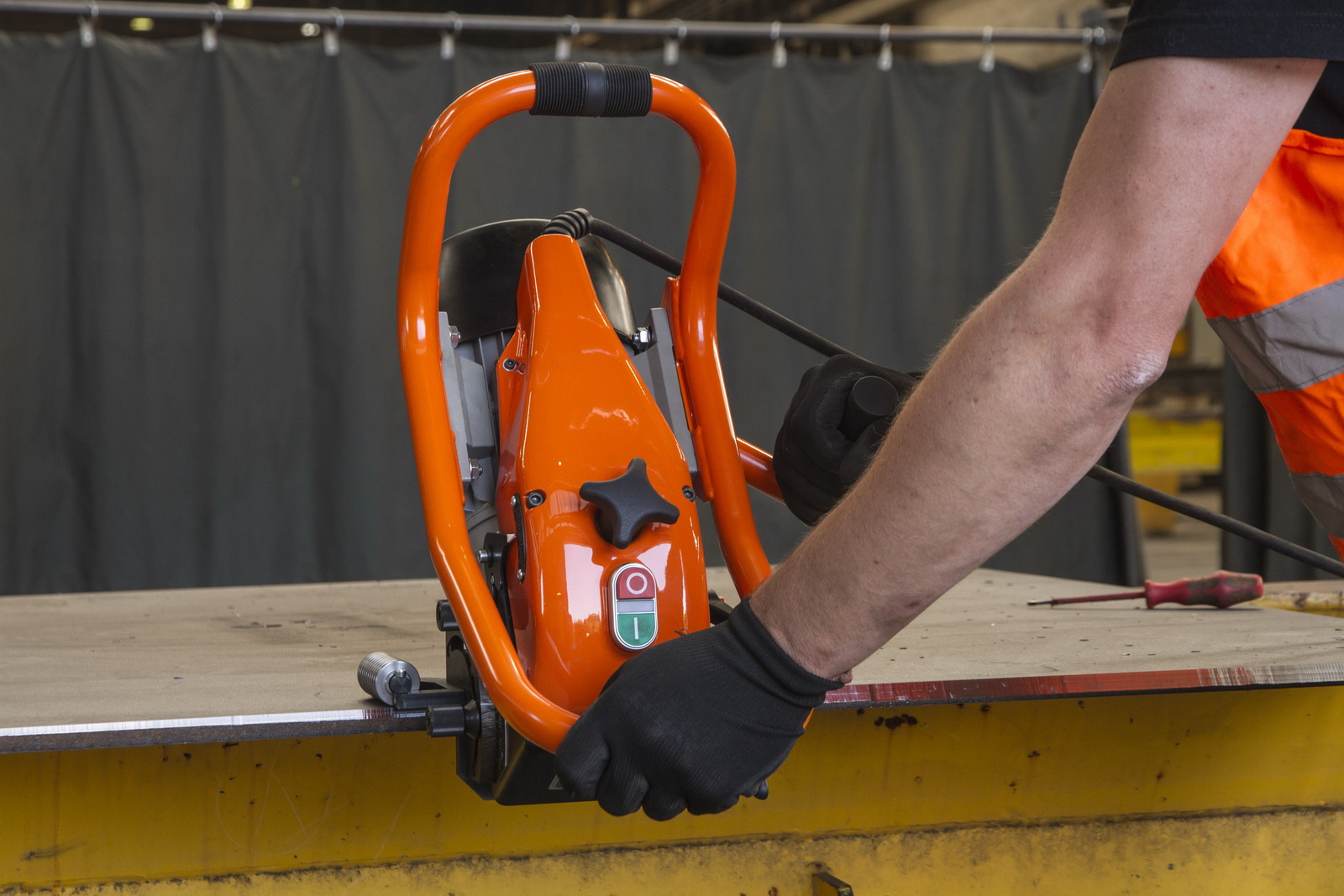

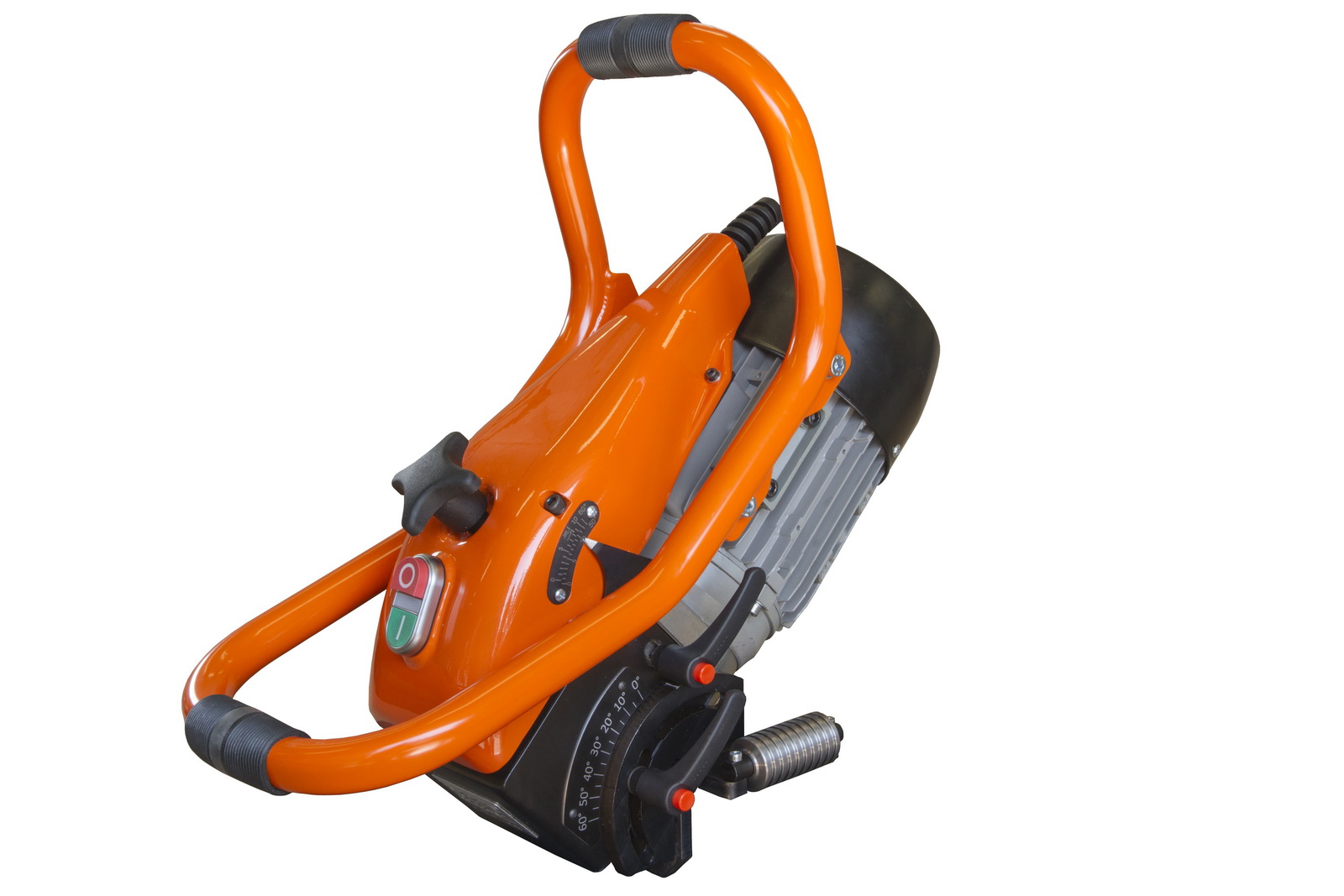

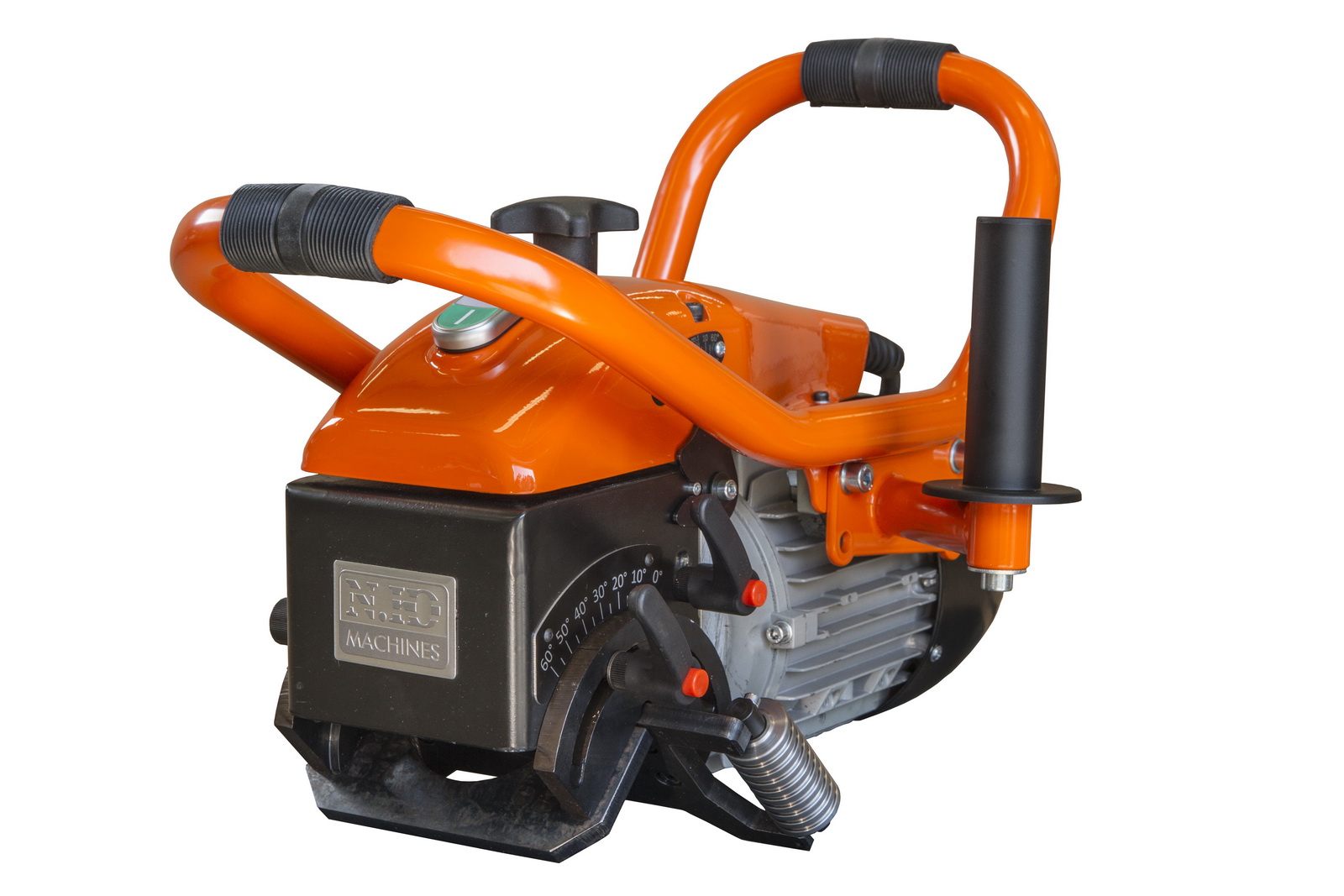

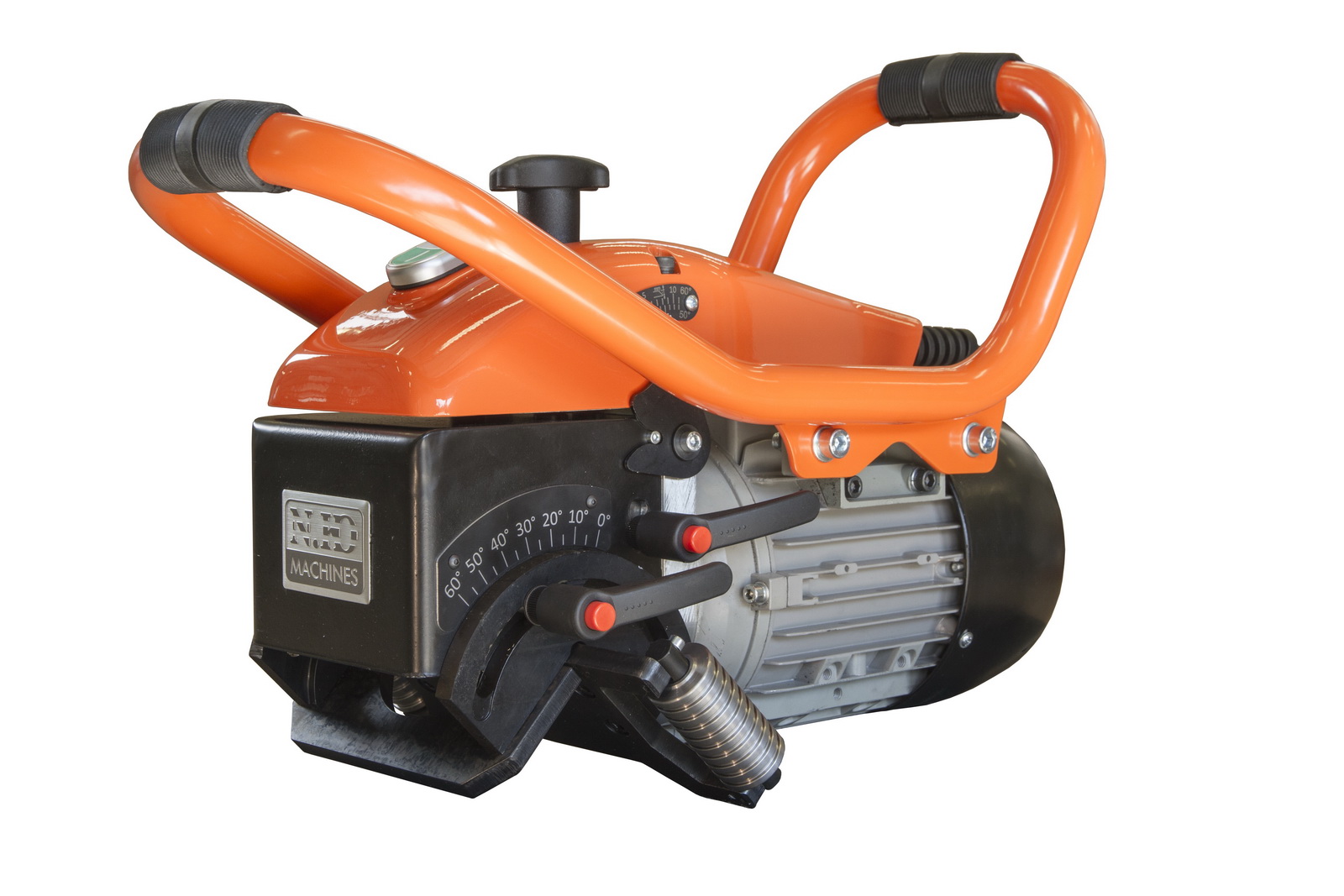

Hand held beveler B22 ZERO (maximum width of bevel 20 mm / 0.79 in)


B22 ZERO is able to perform FACING - machining edges under angle 0° to remove unwanted material layer after plasma or oxygen cutting.

  • High performance motor
  • Continuously adjustable working angle from 0° - 60°
  • The machine is able to perform FACING - machining edges under angle 0° to remove unwanted material layer after plasma or oxygen cutting.
  • Very compact and ergonomic design allows achieving high productivity during work.
  • Unique bevel size adjustment mechanism increases accuracy of the work.
  • Circumferential protection frame protects the machine in case of fall and allows more options on how to grip the machine while working.
  • With tube accessory can be beveled pipes and tubes to Ø 600mm.
Satisfaction Guaranteed
If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, BEVELLING MACHINES EUROPE s.r.o. will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.


Technical data:
  • Power: 1 100W
  • Voltage:
230 V 1 Phase
120 V 1 Phase

  • Speed: 2 850 rev/ min.
  • Bevel angle: continuously adjustable between 0° - 60°
  • Bevel width:
    • 0 to 20 mm / 0 to 0.79 in < 400 MPa / 58.015 PSI
    • 0 to 16 mm / 0 to 0.63 in < 400 MPa / 58.015 PSI
  • Dimensions: 442x381x318mm
  • Weight: 21kg

Included in price:
  • Machine B22 ZERO including milling head ( packed in carton).
  • Tools needed for operation
  • Operation manual
Art.Nr.
230V - 1 Phase 120V - 1 Phase
Deburring and bevelling system B22 ZERO 29220 29221

Accessories: Art.Nr.

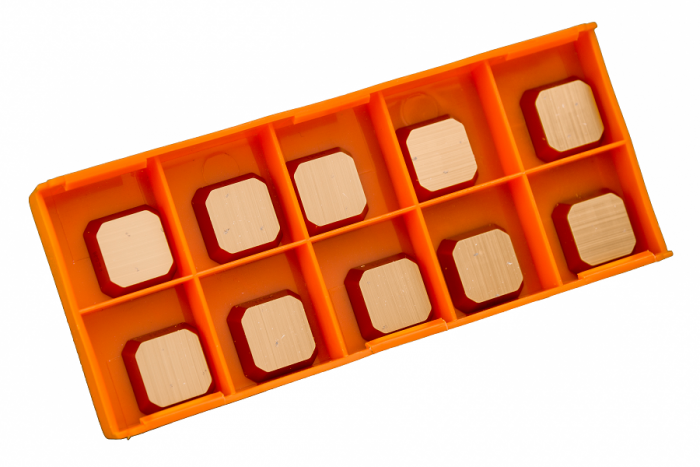

Standard cutting inserts
- four-sided
- pack of 10 pcs
29203

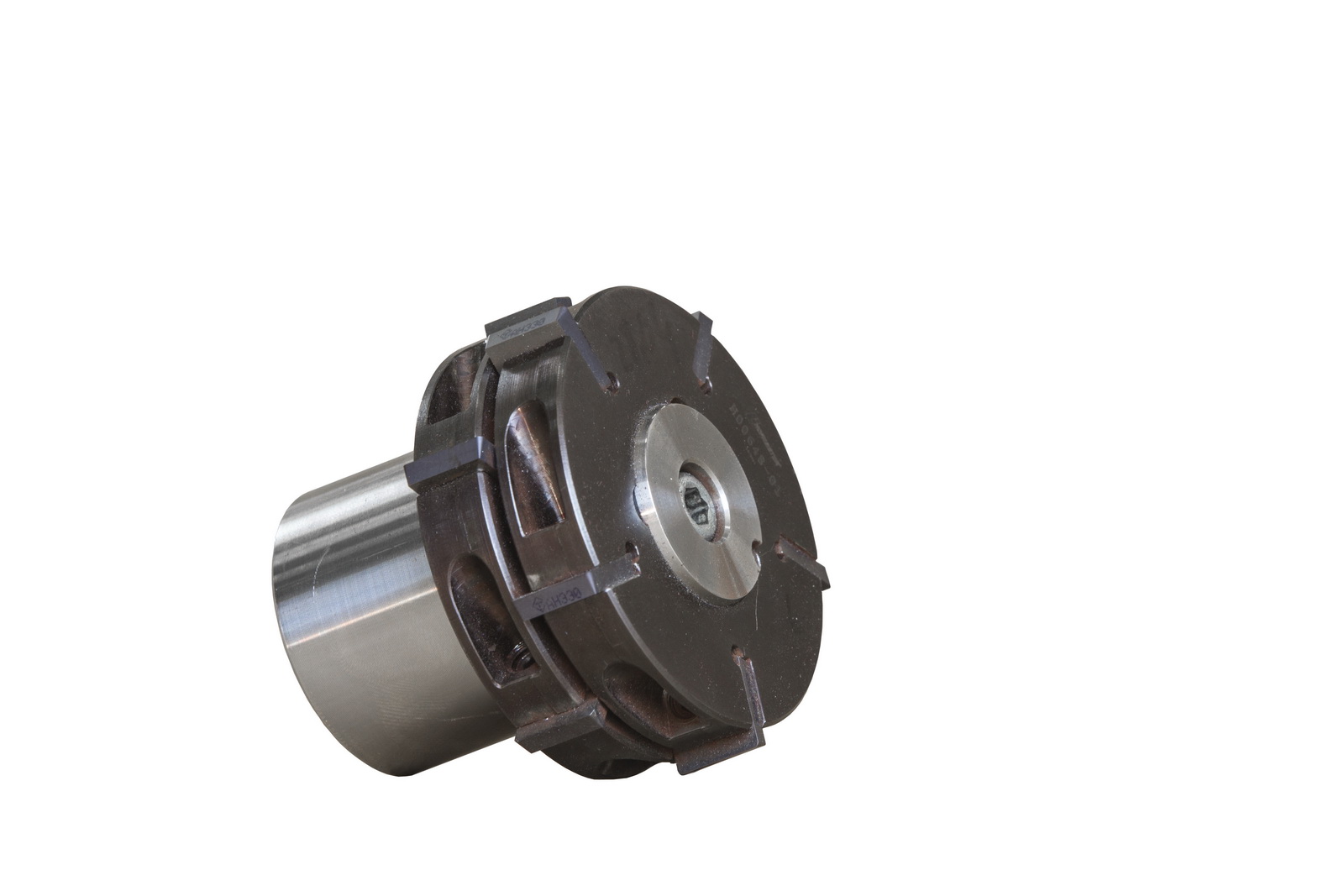

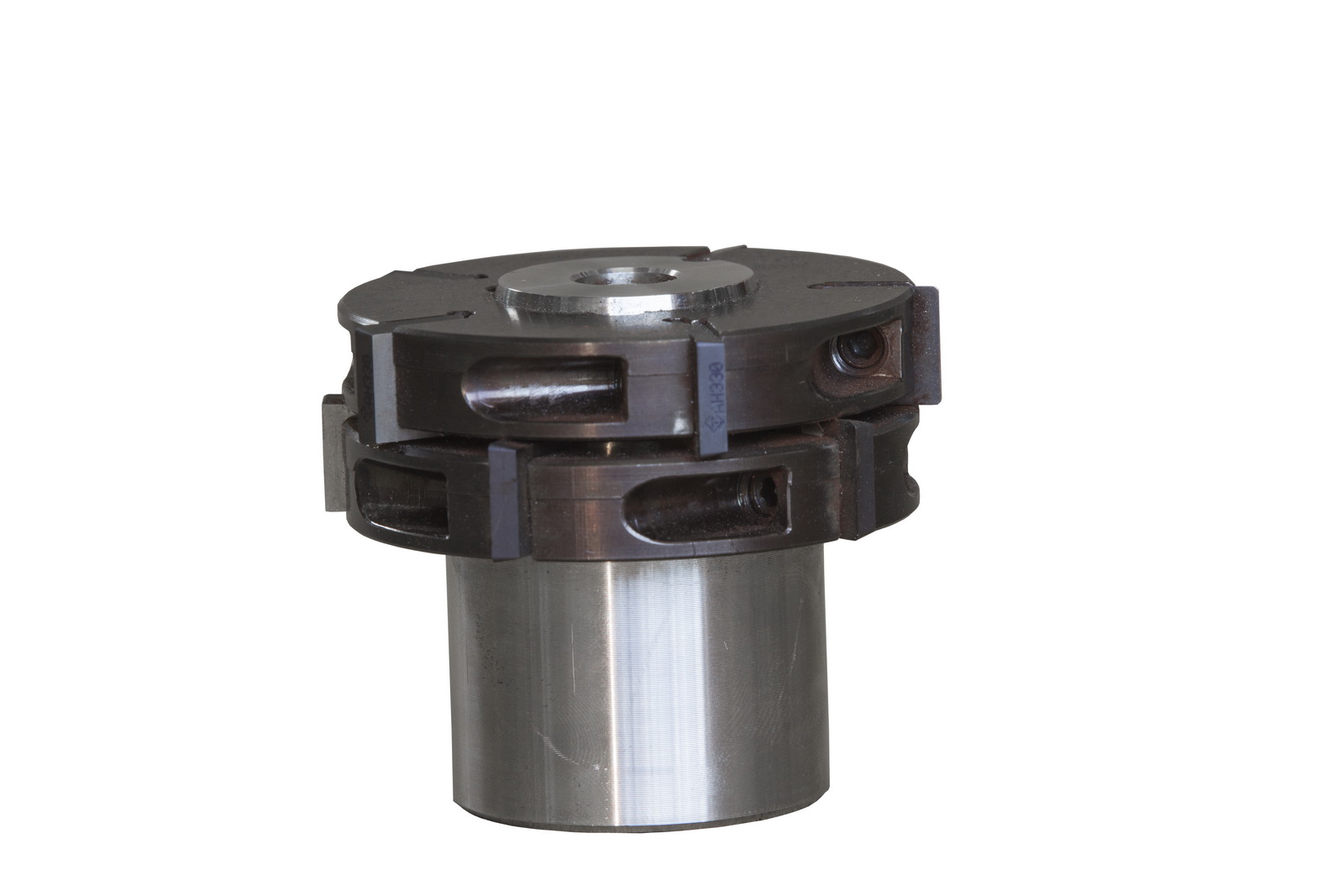

Standard cutting head
- fitted with cutting inserts and screws
29201
Premium cutting inserts
- four-sided
- pack of 10 pcs
29205

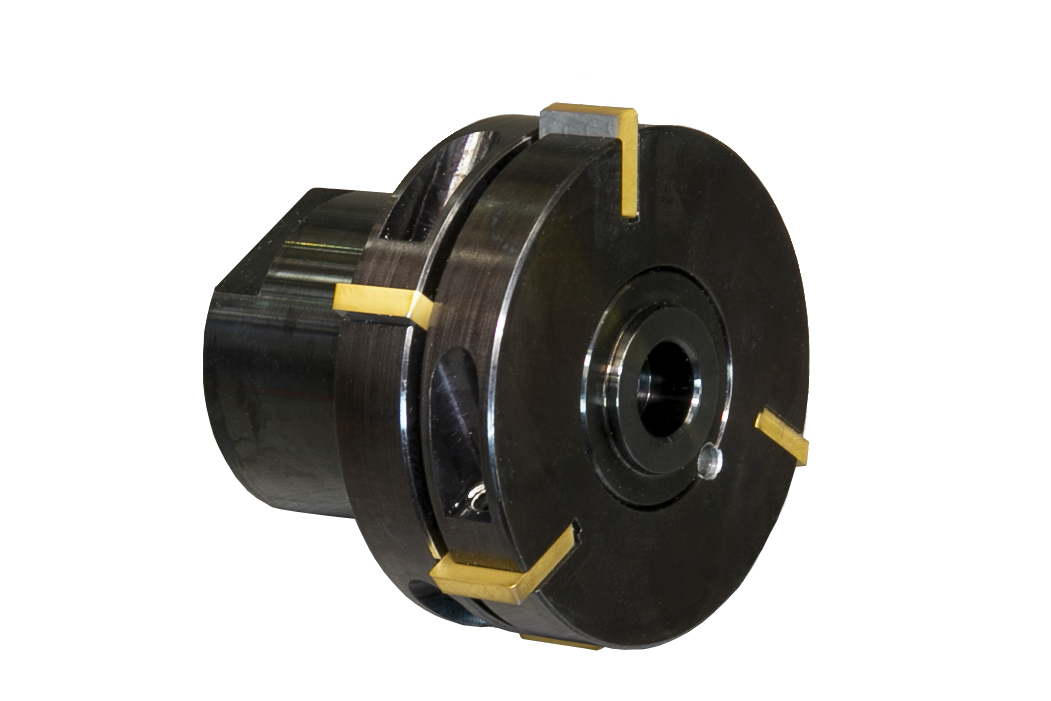

Premium cutting head
- designed for stainless steel
- fitted with cutting inserts and screws
29202

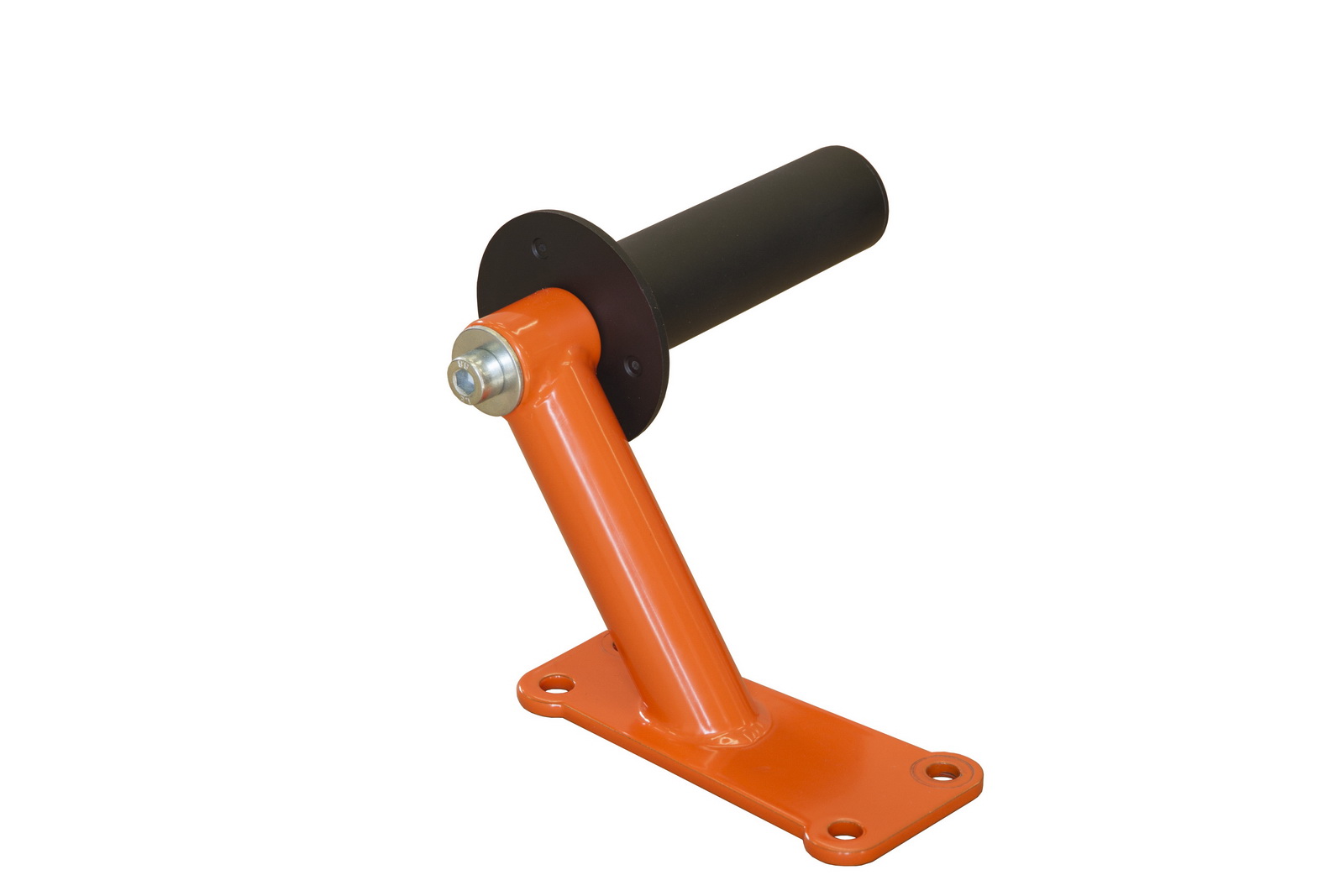

Additional adjustable handle 29206

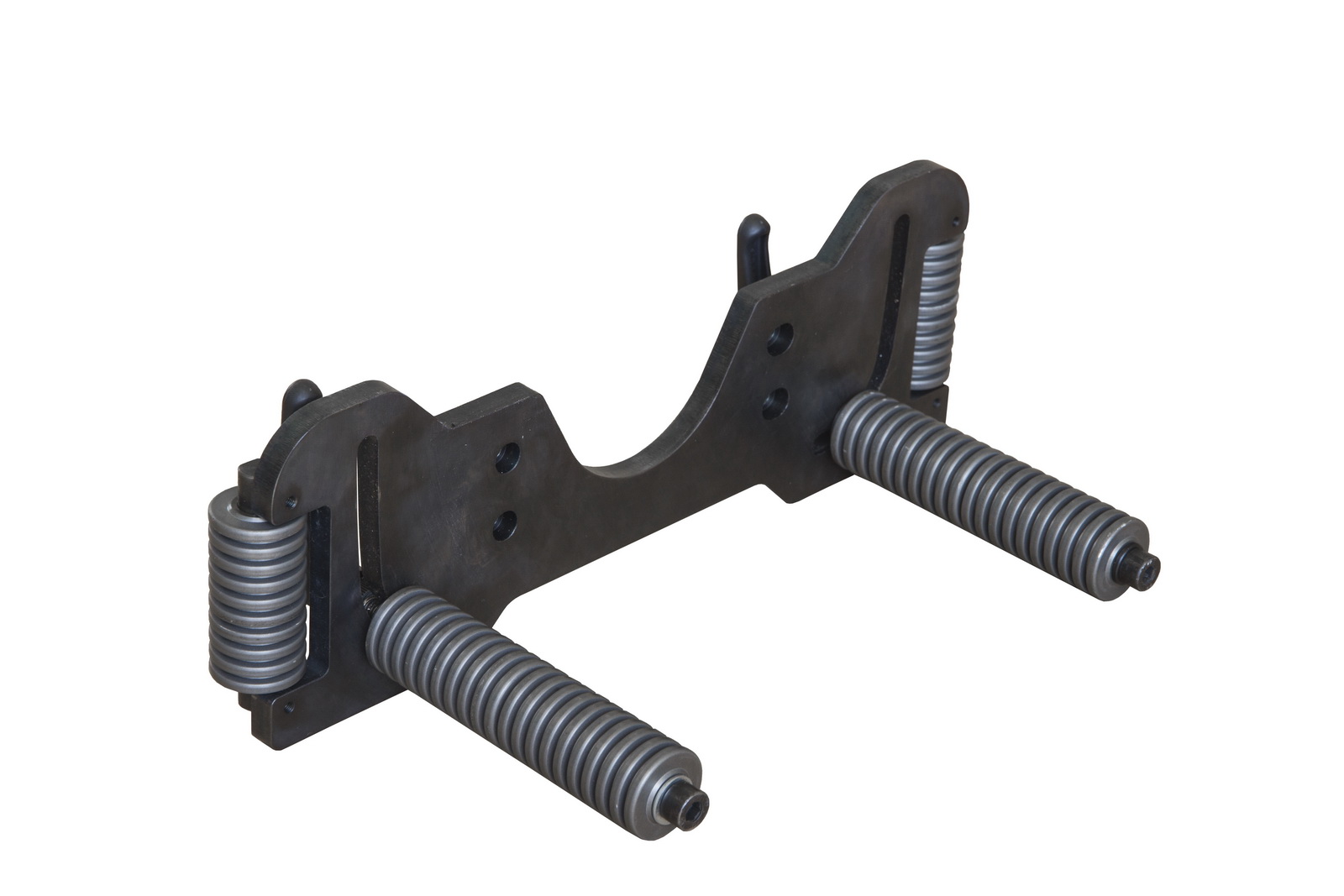

Pipe and tube bevelling adapter from Ø 150 mm / 5.9 in 29204
Screw for the cutting inserts 29200.9300
Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in
NMF0107
