B3

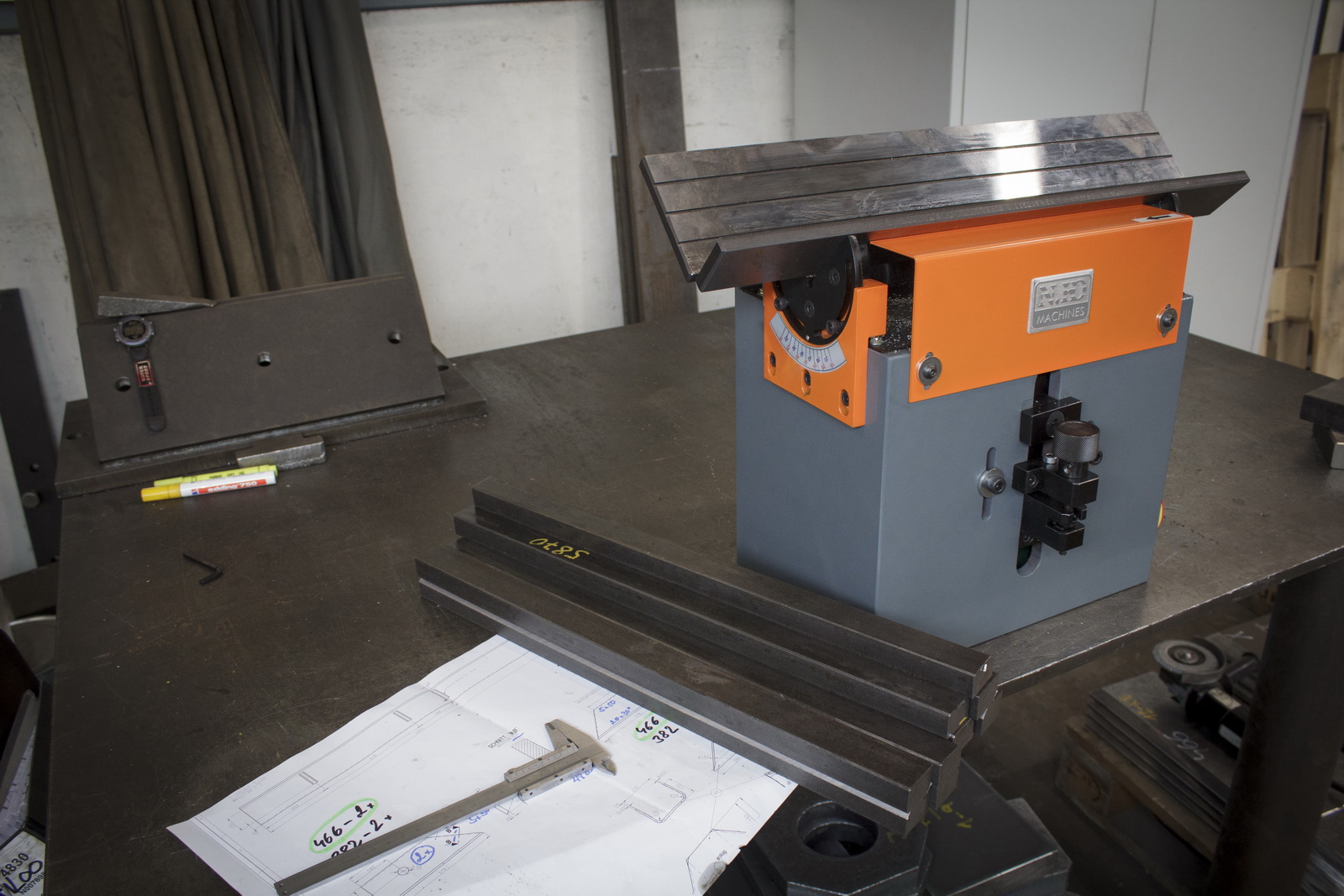

Deburring and bevelling system B3. Stationary desk version

Intended for deburring and bevelling of parts and workpieces made of steel, aluminium, stainless steels and other materials.

  • Bevel width setting scale
  • Option of setting bevel angle to 30° - 60°
  • For steel, stainless steels, aluminium and other materials
  • Guide bars of premium quality material for long lifecycle
Satisfaction Guaranteed
If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, BEVELLING MACHINES EUROPE s.r.o. will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.

Technical data:
  • Bevel angle: 30° - 60°, infinitely adjustable
  • Bevel width: 0 - 3 mm / 0 - 0.12 in
  • Voltage:
  • 400 V /50 Hz, 3phase
  • 110 V/ 50 Hz, 1phase
  • Motor output: 1.3 kW
  • Router speed: 3,600 rpm
  • Feed: hand operated
  • Weight: 28 kg
  • Dimensions 530x420x410mm
  • Number of indexable inserts fitted on milling head - 5 pcs (square)
Included in the price:
  • Complete bevelling system - fitted with head and indexable inserts
  • Supply cord without plug
  • Tools for operators
  • User manual in English

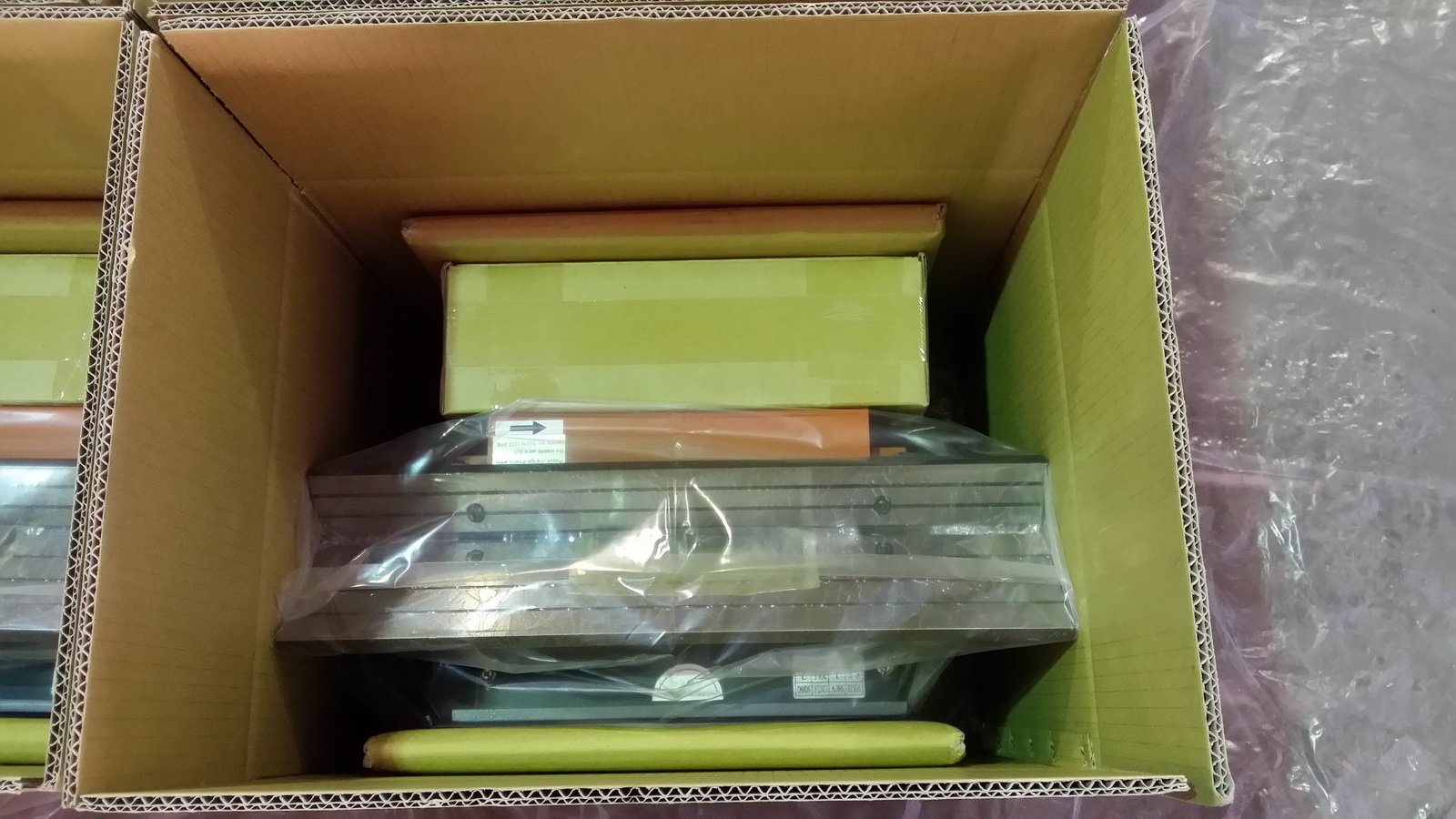

  • Wrapped in cardboard
Art.Nr.
400V - 3 Phase 110V - 1 Phase
Deburring and bevelling system B3 28220 28211

Accessories: Art.Nr.

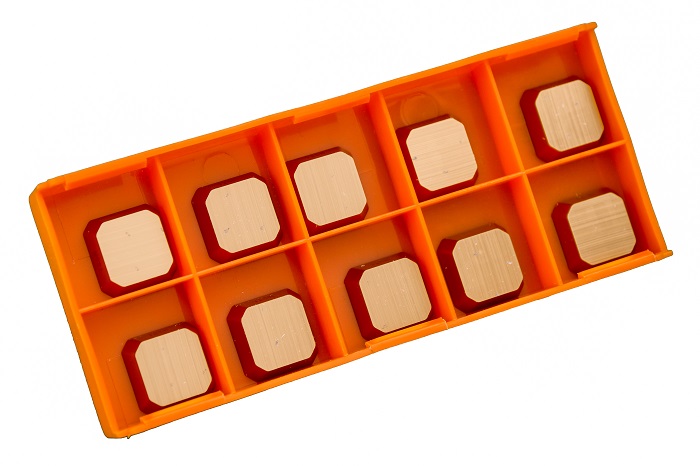

Coated inserts
- four-sided
- pack of 10 pcs
25909

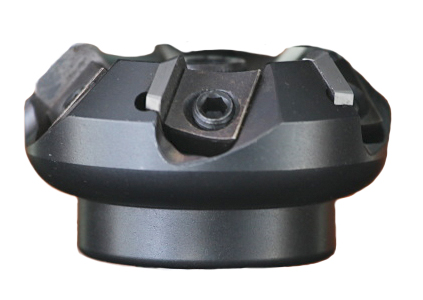

Replacement cutting head
- fitted with cutting inserts
28221

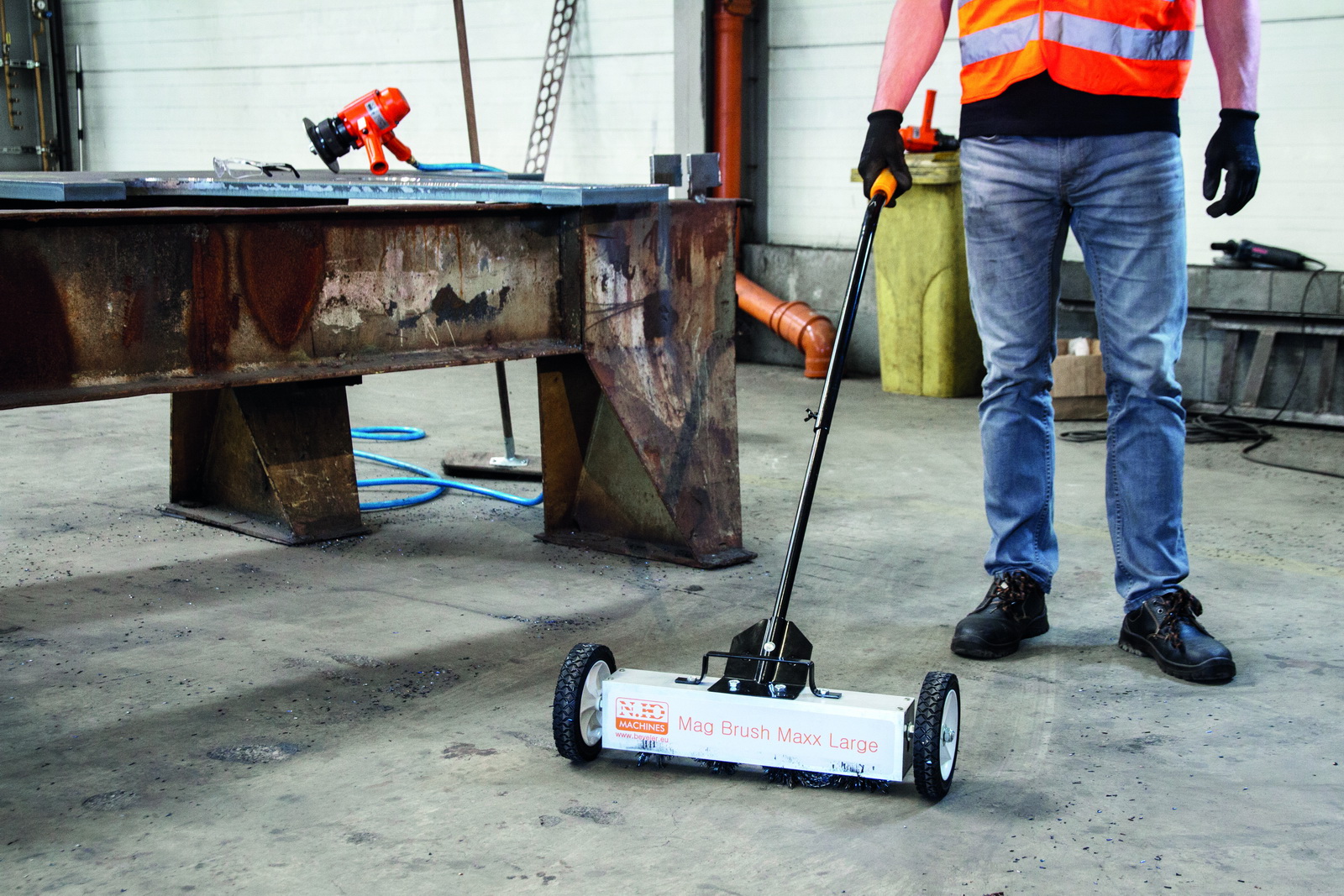

Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in
NMF0107
